產品簡介 (Product Introduction):
8）、較強的柔性導光效果：體積小巧，結構緊湊，易于柔性加工要求。

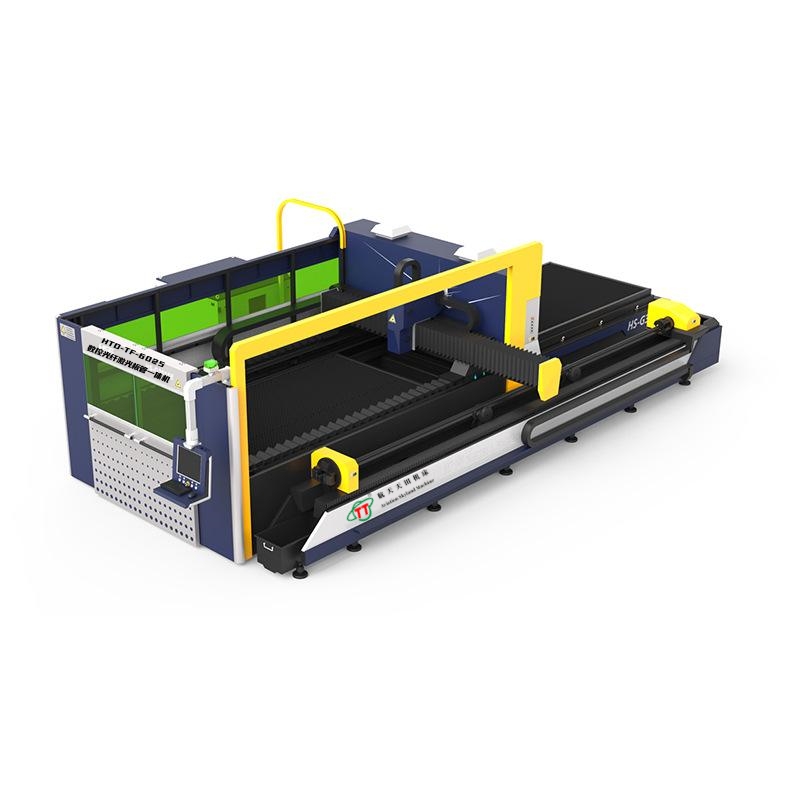

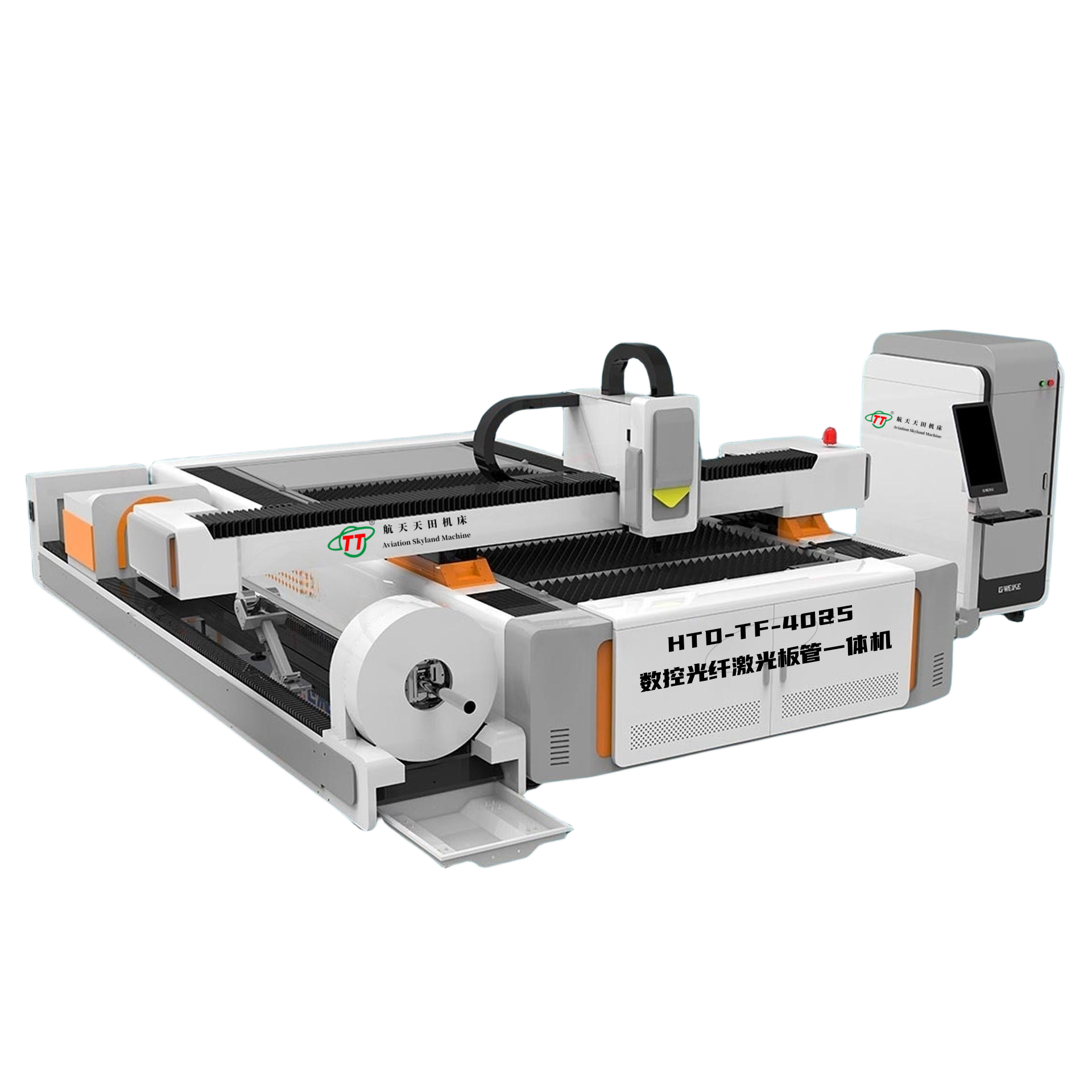

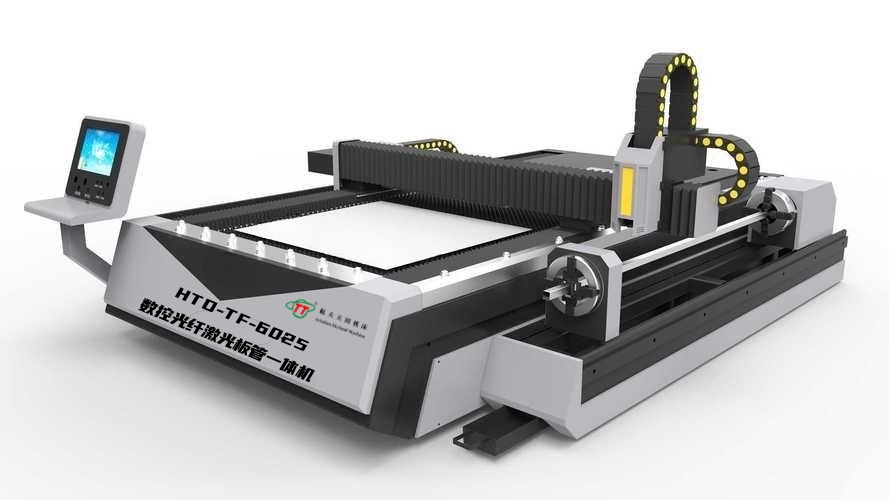

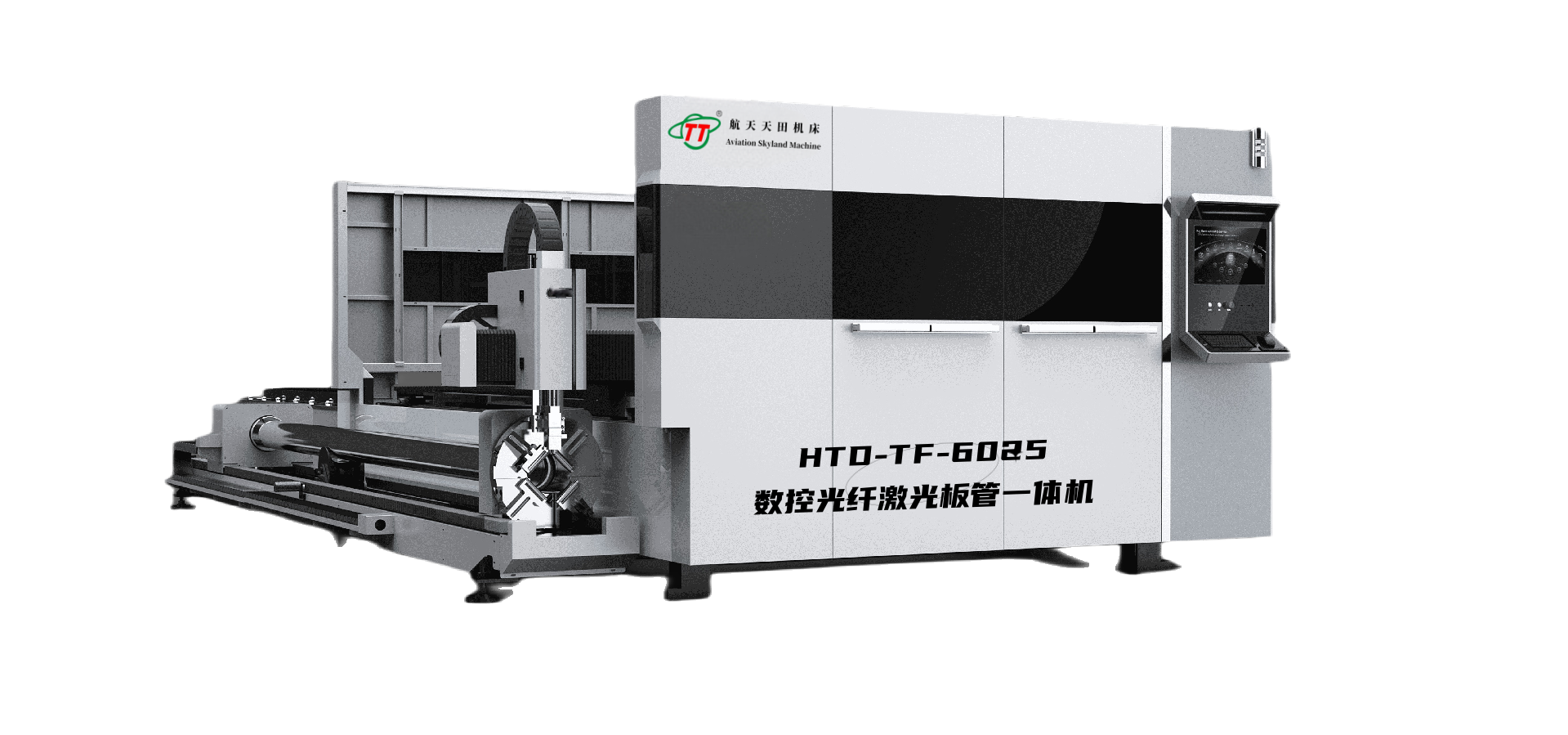

一. The advantage of the plate and tube integrated machine is that it adds a tube cutting function on the basis of the original fiber laser cutting machine, adapting to modern assembly line operations and making the work faster and more convenient. Its advantages are as follows:
1. Excellent beam quality: The focused spot is smaller, the cutting lines are fine, the work efficiency is high, and the processing quality is good.
2. High cutting speed: It is twice as fast as a CO2 laser cutting machine of the same power.
3. High stability: Using IPG fiber lasers or Ruike fiber lasers, the performance is stable, and the service life of key components can reach up to 100,000 hours.
4. High electro-optical conversion efficiency: The electro-optical conversion efficiency of the fiber laser cutting machine is three times higher than that of the CO2 laser cutting machine, which is energy-saving and environmentally friendly.
5. Low usage cost: The power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines.
6. Low maintenance cost: There is no working gas for the laser; with fiber optic transmission, there is no need for reflection lenses, which can save a large amount of maintenance costs.
7. Convenient operation and maintenance of the product: With fiber optic transmission, there is no need to adjust the optical path.
8. Strong flexible light guiding effect: It is small in size, compact in structure, and easy to meet the requirements of flexible processing.

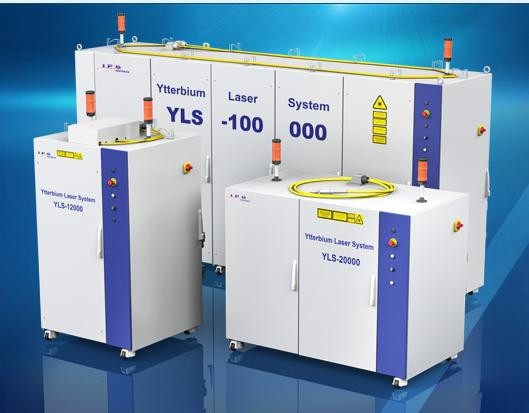

1. Adopt imported IPG fiber lasers or Raycus fiber lasers and laser power supplies.
The IPG fiber lasers or Raycus fiber lasers feature modular and redundant designs. They are small in size and light in weight, making them easy to move. They are also easy to integrate. With stable performance, the overall quality of the products is safely guaranteed.
1、主要基本功能Main Features of Fiber Lasers
1) 光纖激光器電－光轉化效率高，轉換效率達30%以上，可大幅度節約工作時的耗電，節省運行成本，達到較高的生產效率；
10）焦點位置可視窗口，確保輸入焦點與輸出焦點準確一致；
1. The fiber laser has a high electro-optical conversion efficiency, with the conversion efficiency reaching over 30%. It can greatly save power consumption during operation, reduce operating costs, and achieve high production efficiency.
2. When the laser operates, it only requires electrical energy and does not need additional gases to generate the laser, resulting in low operation and maintenance costs.
3. The fiber laser adopts a semiconductor modular and redundant design. There are no optical lenses in the resonant cavity, and it does not require a start-up time. It has the advantages of being free from adjustment, maintenance-free, and highly stable, reducing the cost of accessories and maintenance time, which is unparalleled by traditional lasers.
4. The output wavelength of the fiber laser is 1.06 micrometers, which is 1/10 of the wavelength of CO2. The output beam has good quality and high power density, which is conducive to the absorption of metal materials and has excellent cutting and welding capabilities, thus reducing the processing cost.
5. The optical path of the whole machine is transmitted through optical fibers, eliminating the need for complex light guiding systems such as mirrors. The optical path is simple, the structure is stable, and the external optical path is maintenance-free.
6. The light is exported through optical fibers, making the design of the mechanical system very simple and very easy to integrate with robots or multi-dimensional workbenches.
7. After adding a shutter to the laser, one laser can serve multiple machines. Through fiber optic beam splitting, it can be divided into multiple channels for multiple machines to work simultaneously, which is easy to expand functions and convenient and simple for upgrading.
8. The fiber laser is small in size, light in weight, and its working position can be moved, occupying a small floor area.
10）焦點位置可視窗口，確保輸入焦點與輸出焦點準確一致；

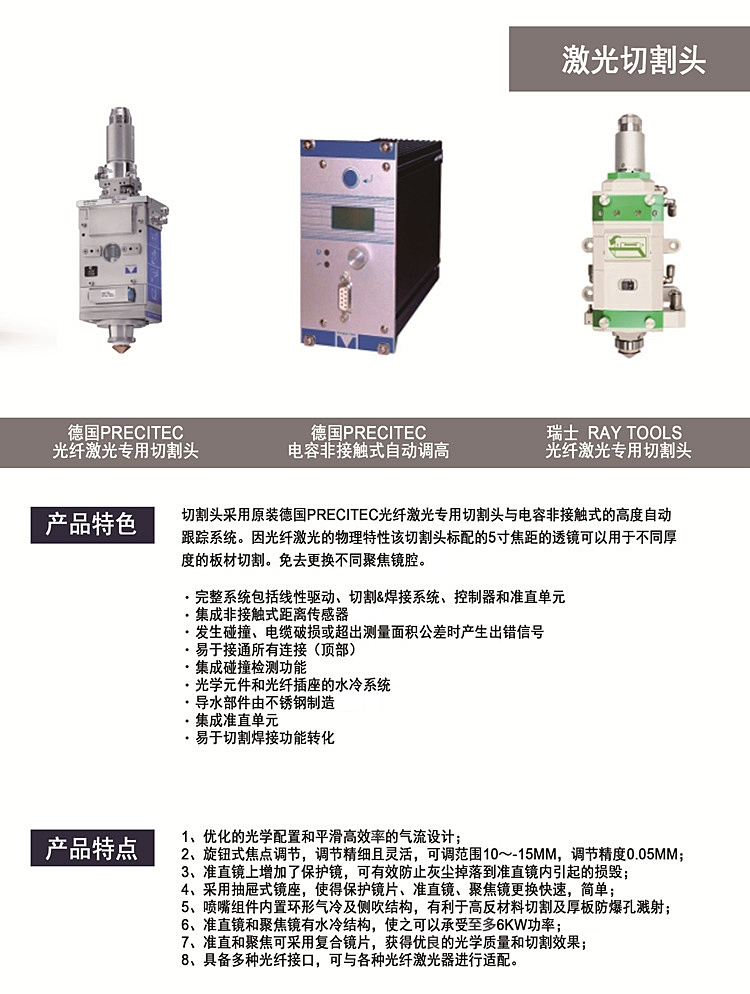

2. Automatic Zoom Laser Head
1）. The focal point can be automatically adjusted, suitable for multiple focal lengths.
2）. Capacitive sensing, fully automatic follow-up system.
3）. Adopting composite lenses and an internal water cooling structure.
4）. Double water cooling and constant temperature guarantee for the collimation and focusing components.
5）. Using a drawer-type mirror base for quick replacement of protective lenses; Smooth and efficient air flow design.
6). Compatible with various fiber lasers.
7). Universal for short and long focal lengths, capable of achieving good cutting effects for thin or thick plates.
8). All equipped with collimation protective mirrors for better protection of the collimating mirrors.
9）. The QBH circumferential position is adjustable, ensuring that the red dot of each QBH faces outward, facilitating the insertion and extraction of the optical fiber head.
10）. Visual window for the focal point position to ensure that the input focal point is accurately consistent with the output focal point.
激光切割的原理是將激光束聚焦成很小的光點，使焦點處達到很高的功率密度，這是光束輸入（由光能轉換）的熱量遠遠超過被材料反射，傳導或擴散的部份，材料很快加熱到氣化的溫度，蒸發形成孔洞。隨著光束和材料相對線性移動，使孔洞形成寬度很窄的切縫。
1. Driven by dual servo motors.
2. It has higher stability, higher speed and faster acceleration.
3. Full-digital CNC servo motor communication.

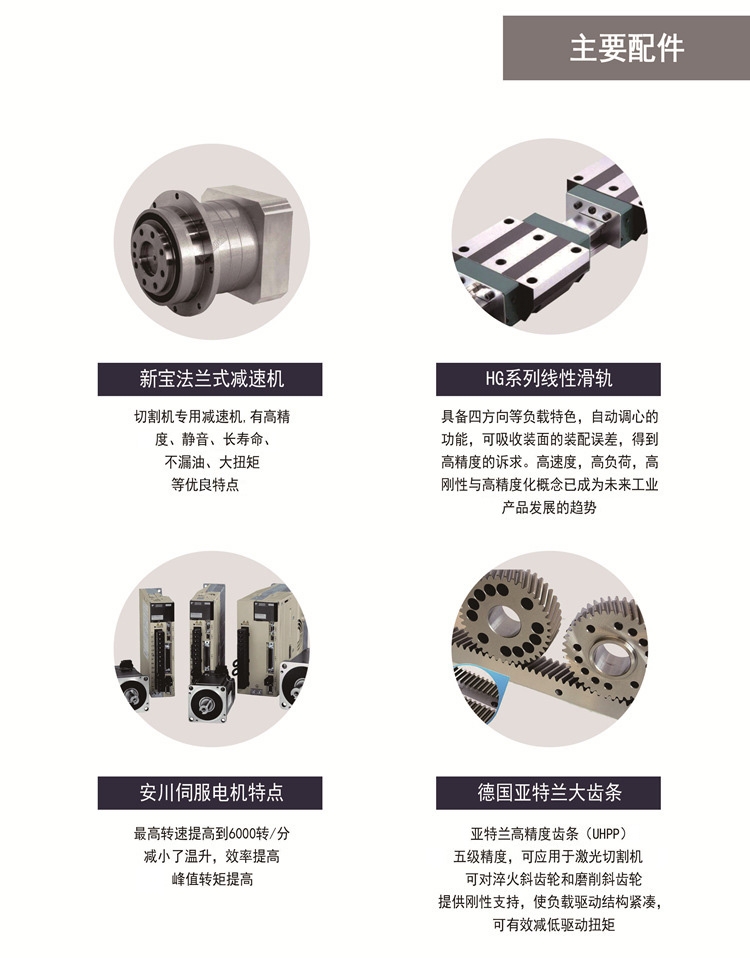

4. This machine adopts a gantry structure, imported reducers and high-precision linear guides. The transmission is stable and the precision is high, which greatly improves the production efficiency of the machine tool.
5. The machine tool adopts an integral welding structure. After annealing, it is roughly processed, and then undergoes vibration aging treatment. This can eliminate the stress from welding and processing. It has good rigidity, high precision and can maintain its shape without deformation after long-term use.
6. The crossbeam is integrally cast from aluminum alloy. After two high-temperature treatments, it is roughly processed. Then, after vibration aging treatment, it is formed through high-precision processing. It has good rigidity, light weight and excellent dynamic performance.
7. Imported high-precision electronically controlled proportional valve accurately controls the air pressure of the cutting auxiliary gas to achieve an accurate cutting effect.
8. Basic Principle of the Laser Cutting Machine
The principle of laser cutting is to focus the laser beam into a very small spot, so that a very high power density is achieved at the focal point. At this time, the heat input by the light beam (converted from light energy) far exceeds the part that is reflected, conducted or diffused by the material. The material is quickly heated to the gasification temperature, and evaporation forms a hole. As the light beam and the material move linearly relative to each other, the hole forms a very narrow slit.
3）相對于沖床，剪板機，它不需要模具，節約了換模具的時間，降低了加工成本。能切割復雜的圖形。

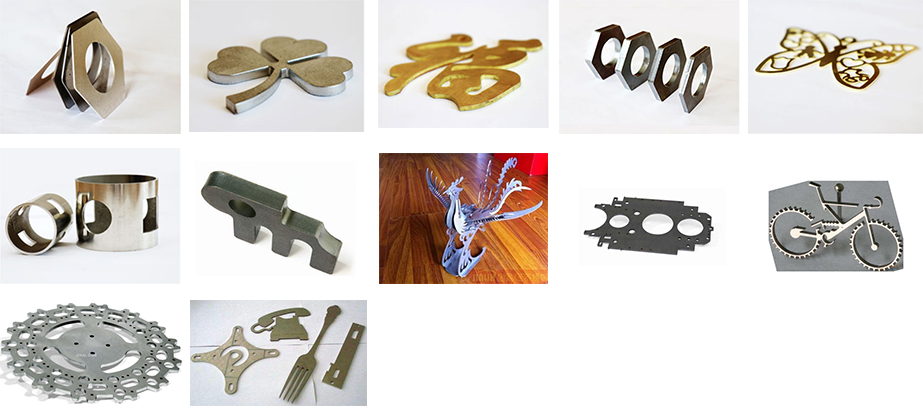

1. Narrow cutting seam, small deformation, high precision, fast speed and high efficiency.
2. Laser cutting is a non-contact processing method with high energy and good density controllability.
3. Compared with punch presses and plate shears, it does not require molds, saving the time for changing molds and reducing the processing cost. It is capable of cutting complex graphics.
六、技術參數表（Technical Parameter Table）
設備型號 Equipment Model | HTD-TF-3015 | HTD-TF-4015 | HTD-TF-4020 | HTD-TF-6015 | HTD-TF-6020 | HTD-TF-6025 |
加工范圍長*寬 Processing Range: Length × Width | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm | 6000*2500mm |
加工管直徑 Processing Pipe Length (mm) | ≤170 | ≤170 | ≤170 | ≤170 | ≤170 | ≤170 |
加工管長度 Processing Pipe Diameter (mm) | 3010mm | 4010mm | 4010mm | 6010mm | 6010mm | 6100mm |
X軸行程 Travel of X-axis | 1505mm | 1505mm | 2010mm | 1505mm | 2010mm | 2510mm |
Y軸行程 Travel of Y-axis | 3010mm | 4010mm | 4010mm | 6010mm | 6010mm | 6100mm |
Z軸行程 Travel of Z-axis | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
X/Y定位精度 Positioning Accuracy of X/Y Axis | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
X/Y重復定位精度 Repeat Positioning Accuracy of X/Y Axis | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
X/Y最大加速度 Maximum Speed of X/Y Axis | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G |
高度調節 Height Adjustment | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） |
最小線寬 Minimum Line Width | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm |
工作臺最大載重 Maximum Load Capacity of the Workbench | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
最大運行速度Maximum Operating Speed | 600KG | 650KG | 650KG | 750KG | 850KG | 900KG |
傳動系統Transmission System | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) |
數控系統 Numerical Control (NC) System | CypCut | CypCut | CypCut | CypCut | CypCut | CypCut |
激光器功率 Laser Power | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W |
外形尺寸（長*寬*高）m ！Overall Dimensions (Length × Width × Height) | 4800*3800*1800（mm) | 5800*3800*1800（mm) | 5800*3900*1800（mm) | 7700*3900*1800（mm) | 7800*4300*1800（mm) | 7800*4850*1800（mm) |
注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，
以上參數如有變動,恕不另行通知，本公司保留對此資料的最終解釋權!
Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.
The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
